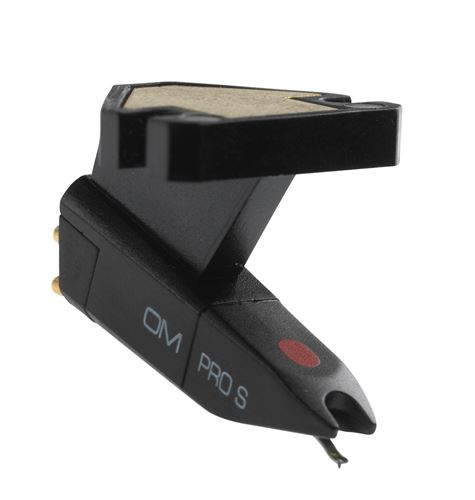

Description OM Pro S entry-level cartridge and Stylus Output voltage at 1000Hz, 5cm/sec. – 5 mV Channel balance at 1kHz – 2 dB Channel separation at 1kHz – 20 dB Channel separation at 15 kHz – 15 dB Frequency range at -3dB – 20-18.000 Hz Tracking ability at 315 Hz at recommmended tracking force – 70 µm Compliance, dynamic lateral – 7 µm/m N Stylus type – Spherical Tracking angle – 20° Internal impedance, DC resistance – 750 Ohm Internal inductance – 450 mH Recommended load resistance – 47 kOhm Recommended load capacitance – 200-600 pF OM cartridge weight – 5,0 g Stylus tip radius – R 18 µm Tracking force range – 3 – 5 g Tracking force recommended – 4 g
