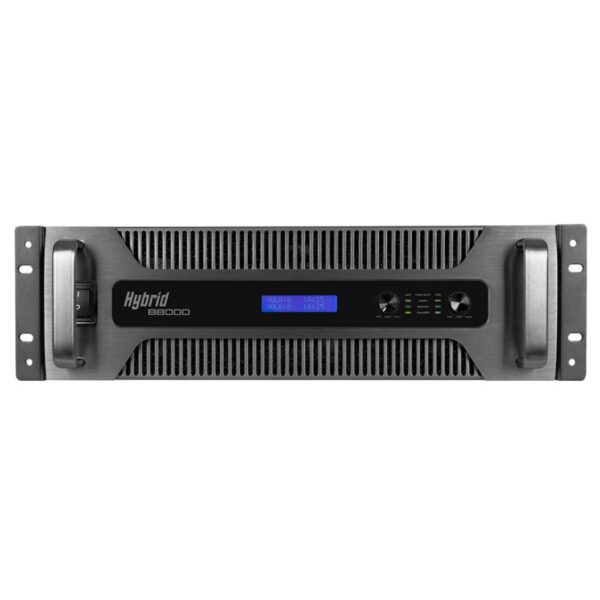

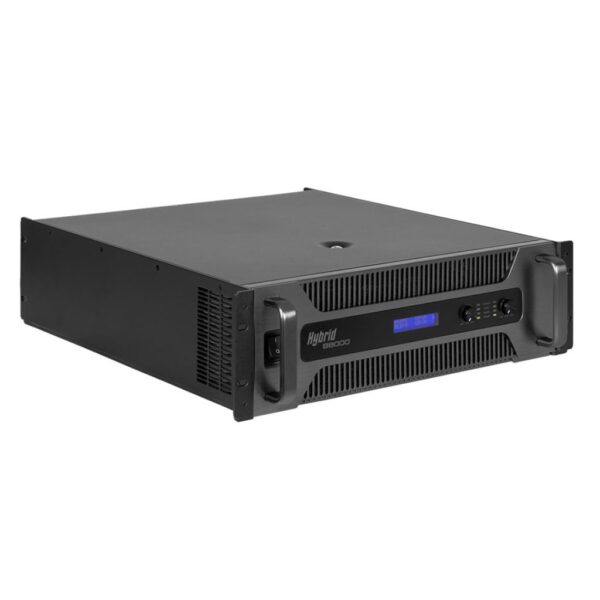

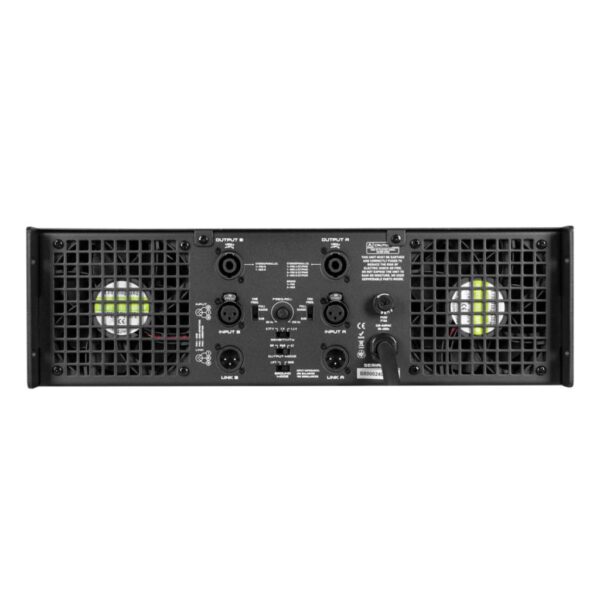

Description Power Amplifier 2 Channel The Hybrid B8000 MK6 is a robust, 19″, 4U rack-space, 2 channel power amplifier with an onboard front panel LCD screen indicating channel gain, channel temperature and mains voltage, as well as front panel LED indication for signal, limit and protection. Inputs and signal link-thru are made using the panel mount XLR (Male and Female) connectors located on the rear panel of the amplifier. Similarly, speaker connections are made using the NL4 panel mount connectors. The B1800 MK6 can be used as a stereo, a parallel input or a mono bridged-mode amplifier. B8000 MK6 Channels: 2 Power: 2 x 4000W RMS/2Ohm – Stereo mode/Parallel mode Power: 2 x 2800W RMS/4Ohm – Stereo mode/Parallel mode Power: 2 x 1800W RMS/8Ohm – Stereo mode/Parallel mode Power: 1 x 7800W RMS/4Ohm – Bridged mode Power: 1 x 5600W RMS/8Ohm – Bridged mode Protection: Active clip limiting, impedance sensing, soft start, thermal protection, DC protection and subsonic frequency limiting Cooling: Forced air cooling Controls: Dual rotary gain control, on-off switch, ground lift switch, mode switch Indicators: LCD screen (Channel gain, channel temperature, main voltage), On LED, Signal LED, Limit LED, Protection LED Inputs: 2 x XLR Female panel mount connectors Link-thru: 2 x XLR Male panel mount connectors Outputs: 2 x NL4 (Speakon) Dimensions (W x H x D): 487 x 99 x 387mm Weight: 16.3kg
