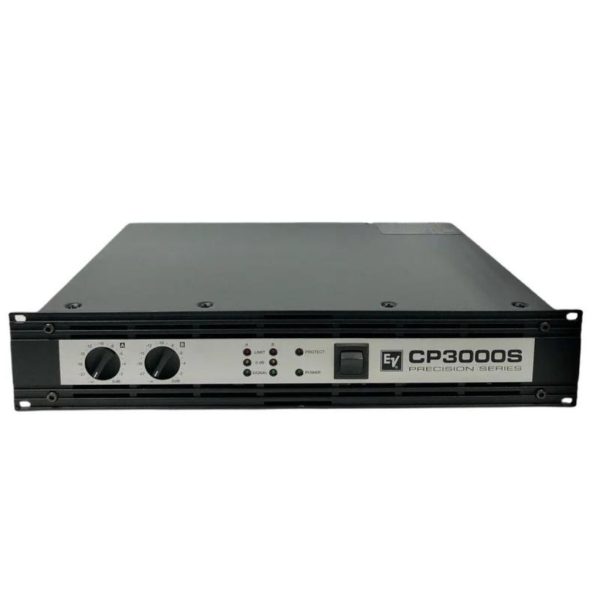

Description Electro-Voice’s new Precision Series Compact amplifiers offer proven Precision Series performance and reliability in a new compact, lightweight format made possible by a highly efficient Class-H design, which generates considerably less heat. The CP3000S is not only the first Precision Series amplifier to use a switch-mode power supply, but also the first switch-mode amplifier with EV’s Precision Series sound. With up to 2×1600 watts into two ohms, and 2×1100 watts into four ohms, and only 8.15 kg it is both powerful and lightweight •Designed for Club Sound, Concert Sound, House of Worship, Performance & Sports Venues, Pro Music, and other applications. •Up to 2 x 1600 W into 2 ohms •XLR pass-though input connections •The NL4 connection on output A also carries output B on pins /- 2 to allow easy connection to bi-amped loudspeakers •Extremely lightweight and highly efficient •Class-H design •Switch mode power supply •Three-stage front-to-rear fans •Complete protection package •Classic EV amplifier dynamic headroom for real-world music and applications •Built-in dynamic limiters Specs Amplifier Gain 32 dB Continuous Rated Power (1 kHz, THD 1%) 1600 Watts @ 2 ohms Continuous Rated Power (1 kHz, THD 1%) 1100 Watts @ 4 ohms Continuous Rated Power (1 kHz, THD 1%) 600 Watts @ 8 ohms Continuous Rated Power (20-20 kHz, THD<0,2%) 900 Watts @ 4 ohms Continuous Rated Power (20-20 kHz, THD<0,2%) 450 Watts @ 8 ohms Electronics Type Amplifier Input Sensitivity 5.8 dBu Intermodulation Distortion (SMPTE) 0.02 % Maximum Bridged Output 3200 Watts @ 4 ohms Maximum Bridged Output 2200 Watts @ 8 ohms Network Control (IRIS-Net) No Total Harmonic Distortion 0.05 % Height 2RU 88.1 mm Width 483 mm Depth 368.8 mm Weight Net 8.15 kg
