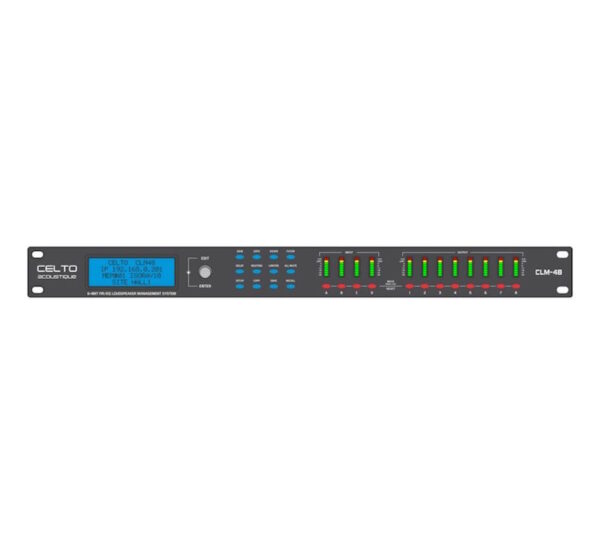

Description CELTO Acoustique CLM48 is a comprehensive loudspeaker management system that offers high-end hardware, extended processing capacity and fully featured control software. With 192 parametric filters available and more than 6 km of total delay, CLM48 is ready to handle the most challenging projects. When paired with CELTO Acoustique amplifiers and speakers, CLM48 unlocks new territories of performance, thanks to the custom presets that use FIR filtering and Dynamic EQs . High Precision 32-Bit Floating Point Top Of The Line SHARC DSP (96khz Sampling Rate) Each Output: Routing, Delay, Gain, HPF And LPF Filters (Up To 48db/Oct), 16 Filters (PEQ, Notch And Shelving), 2 Dynmic EQ Per Chanel And 1024 Tap FIR Filters (Only Of CELTO Presets) Peak Stop And Turermscompressor / Limiter (Threshold, Attack, Release, Ratio) Each Input: Delay, Feedback Eliminator,Gain, Compressor, And 16 Filters (PEQ And Shelving) Full Matrix Between Inputs And Outputs Password Protection 32 Preset Memories 24-Bit D/A Converters With 123B Dynamic Range And Audiophile Grade Preamps 2 Stereo AES/EBU Digital Input 100MB RJ45 Ethernet Interface Compatible With Common TCP/IP Network Equipment CELTO SP CONTROL Software For Windows Platform SPECIFICATION Analog Inputs 4 Female NEUTRIK XLR Electronically Balanced / RF Filtered > 40kω Impedance 21dbu Maximum Input Level 118db A-Weighted Dynamic Range A/D Converters Digital Inputs 2 Stereo AES/EBU (Switchable To Analog On Front Panel UI And Software) Analog Outputs 8 Male NEUTRIK XLR Electronically Balanced / RF Filtered, 120Ω Impedance, 22dbu Maximum Output Level, 123db A-Weighted Dynamic Range D/A Converters Connectivity 100MB Ethernet (RJ45). Communication Protocol Based On TCP/IP System Performance 96khz Sampling Rate, 64-Bit Accumulators, Frequency Response Of 20~20k Hz At -0.5db, THD N Lower Than 0.001% At 4dbu, 1khz, 0db Input, Interchannel Crosstalk >115db Power 100~250Vac / 50-60Hz / 35W Max Consumption, Powercon 3 Pin
