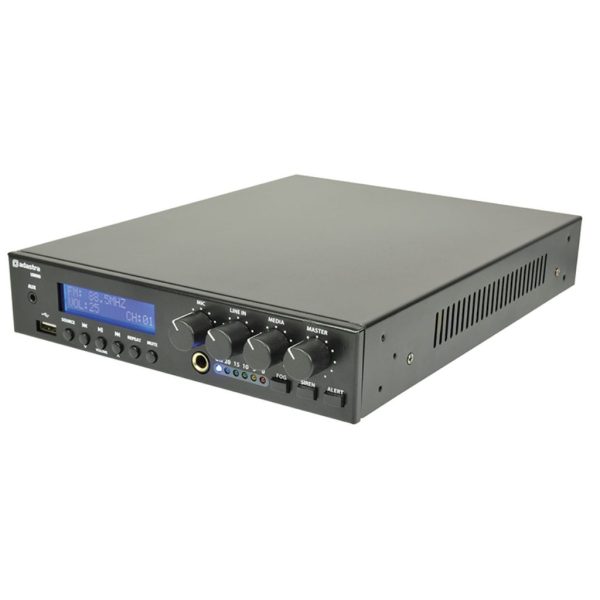

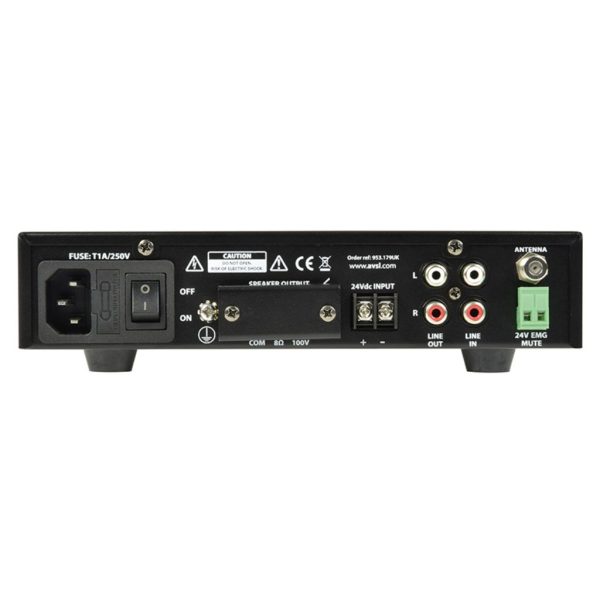

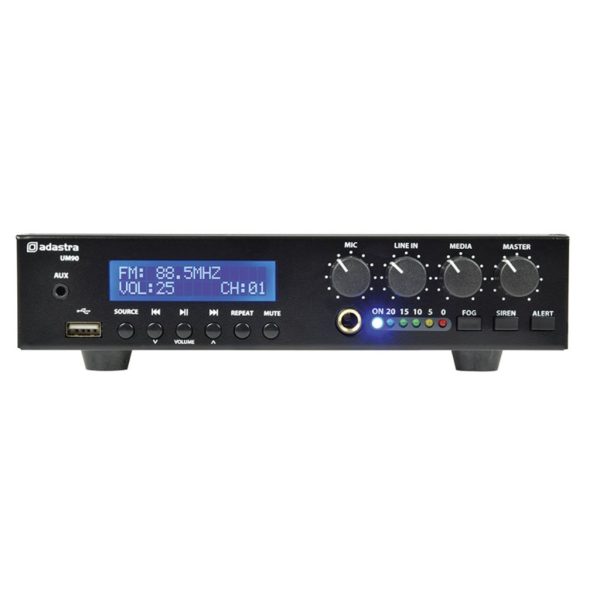

Description DESCRIPTION: 100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19″ rack space. Designed as a versatile solution for small to medium PA installations. SPECIFICATIONS: Power supply: 170-264Vac, 50Hz (IEC) or 24Vdc Amplifier : construction: Class D transformer output Audio source: Internal USB/FM/BT player Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm) Line output: 2 x RCA (mono) Speaker outputs: Screw terminals – 100V / 8 Ohms / Com DC power: 24Vdc screw terminals Mute: 24V relay contacts THD: <0.4% @ 1kHz Input impedance: 1k Ohms (mic/line) Input sensitivity: -10dB (line), -45dB (mic) SNR: 80dB (line), 75dB (mic) Frequency response: 100Hz – 18kHz Output power : rms : 90W (80W @ 24Vdc power) Alarm output : Fog, siren & alert generator Dimensions : 300 x 210 x 44mm Weight : 3.02kg FEATURES: Ultra compact form factor Efficient class D amplifier design Internal USB/FM/BT audio player 100V line or 8 Ohms operation Bluetooth with programmable ID
