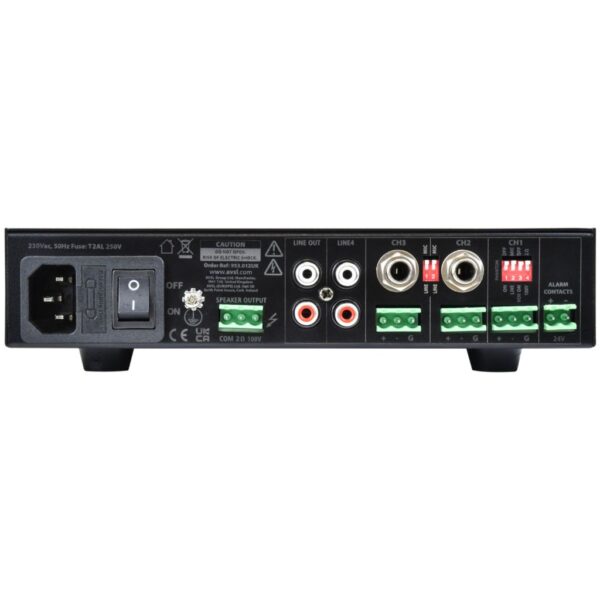

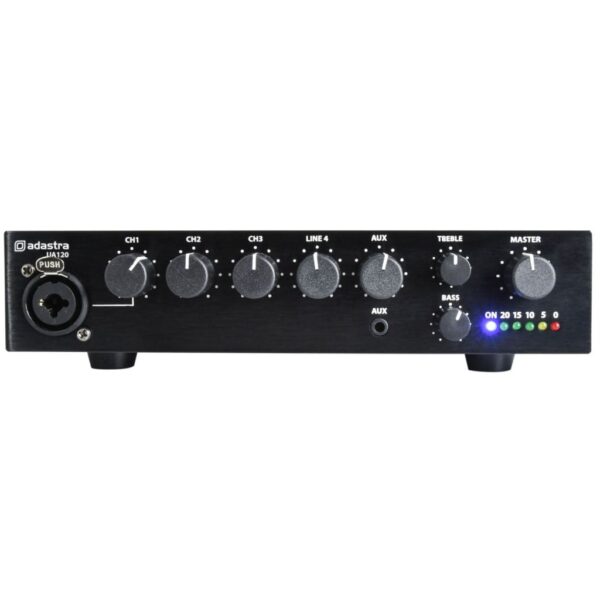

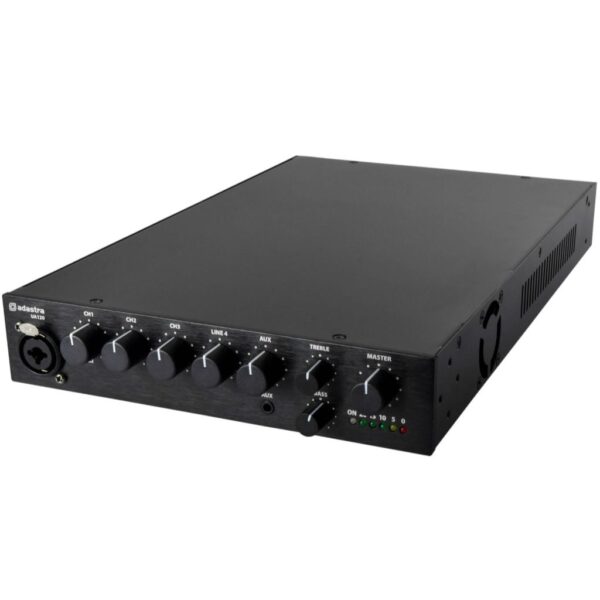

Description 100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations. Features Supplied with hardware for rack-mounting 2 units 5 input channels 24V fire alarm mute contacts 100V line or 8 Ohms operation Switchable 20V phantom power CH1 Global 2-band EQ on 120W and 240W models Product Specification Power supply:230Vac, 50Hz (IEC) Amplifier construction:Class D transformer output Inputs:Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm) Phantom power: 20V CH1 (XLR or rear terminals) Line output:2 x RCA (mono) Speaker output:Euroblock terminals: 100V / 8 Ohms / Com Mute:24V relay contacts THD:<0.4% @ 1kHz Input impedance:1k Ohms (mic/line) Input sensitivity:-10dB (line), -45dB (mic) SNR80:dB (line), 75dB (mic) Frequency response:100Hz – 18kHz Output power rms:120W Dimensions:350 x 210 x 44mm Weight:4.13kg
