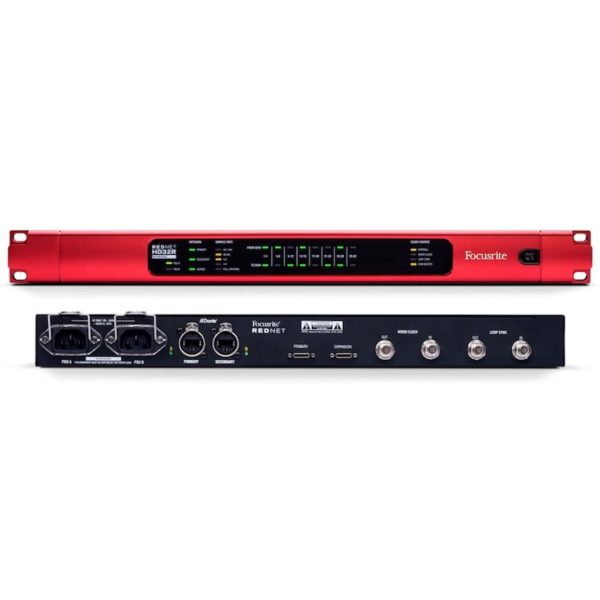

Description 32×32 Pro Tools | HD I/O With Dual PSUs RedNet HD32R is a 1U, Pro Tools | HD™ interface for any Dante™ audio-over-IP network, providing up to 32×32 channels of I/O (16×16 at 192kHz) Featuring network and power supply redundancy, RedNet HD32R is the ideal choice for integrating your Pro Tools HD system into a Dante networked I/O environment in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio. A pair of DigiLink mini connectors allows RedNet HD32R to connect directly to any Pro Tools | HD system whether it’s Native, HDX or even a legacy TDM system. Multiple RedNet HD32R units can be on the same Pro Tools system up to the maximum I/O channel count of Pro Tools, and Loop Sync I/O allows seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD I/O. 32×32 Pro Tools | HD I/O for Dante audio-over-IP networks at up to 96kHz (16×16 at 192kHz), Primary and Expansion DigiLink mini connections, Up to 24-bit, 192kHz sampling rates, AES67 compliant, Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability, Word Clock and Loop Sync I/O for increased flexibility and integration with other Pro Tools | HD hardware, Comprehensive remote control and remote signal metering through RedNet Control, Brainworx bx_console Focusrite – exclusive plug-in that faithfully captures the sound, feel and styling of the original Focusrite, ISA 110 Equaliser and ISA 130 Dynamics Modules. SPECIFICATIONS DIGITAL PERFORMANCE Supported Sample Rates 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit Clock Sources Internal, Word Clock, Loop Sync (master or slave) or from Dante Network Master External Word Clock Range Nominal sample rate ±7.5 Channel Count 32×32 at up to 96kHz sampling rate, 16×16 at 176.4 and 192kHz REAR PANEL CONNECTIVITY Primary Port 1 x Mini DigiLink Expansion Port 1 x Mini DigiLink Word Clock Input 1 x BNC 75O port (switchable termination) Word Clock Output 1 x BNC 75O port PSU 2 x IEC Inputs with retaining clips Network 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors FRONT PANEL INDICATORS Primary PSU (A) Green LED. Illuminates when an AC input is applied and all DC outputs are present Primary PSU (B) Green LED. Illuminates when an AC input is applied and all DC outputs are present Primary Network Green LED. Indicates that a network connection is present on primary port when in redundant mode Secondary Network Green LED. Indicates that a network connection is present on secondary port when in redundant mode Network Locked Green LED. When unit is network slave, shows valid network lock. When unit is network master Sample Rate Orange LED for each: 44.1 kHz, 48 kHz, x2, x4 Pull Up/Down Orange LED. Indicates unit is set to operate on a Dante pull up/down domain Signal Indicators 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS Clock Source Orange LED for each: Internal, Word Clock, Loop Sync and DAW Master NETWORK MODES Redundant Allows unit to connect two independent networks Switched Connects both ports to integrated network switch allowing daisy-chaining of device DIMENSIONS Height 44.5mm/ 1.75″ Width 482.6mm/ 19″ Depth 263mm/ 10.35″ WEIGHT Weight 3.9kg POWER Power PSU 2 x Internal, 100-240V, 50/60Hz, consumption 30VA HEAT PERFORMANCE Operating Temperature Operates at up to an ambient temperature of 50 degrees Celcius
