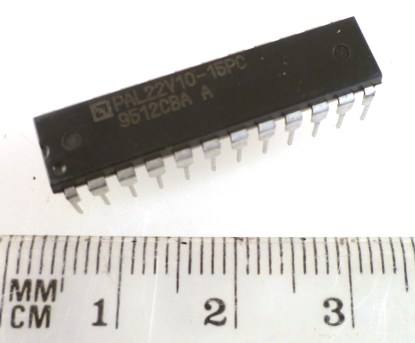

AMD PAL 22V10-15PC 24-Pin TTL Versatile PAL Device OMB3-49A
$30.61
$39.49
Description WE ARE RICH ELECTRONICS WE PURCHASE AND RECYCLE SURPLUS ELECTRONIC COMPONENTS AND EQUIPMENT! For sale here we have the above… 1 Piece SPECIFICATIONS Mfr Package Description 0.300 INCH, SKINNY, PLASTIC, DIP-24 Status Discontinued Programmable Logic Type OT PLD Architecture PAL-TYPE Clock Frequency-Max 50.0 MHz JESD-30 Code R-PDIP-T24 JESD-609 Code e0 Number of Dedicated Inputs 11.0 Number of I/O Lines 10.0 Number of Inputs 22.0 Number of Outputs 10.0 Number of Product Terms 132.0 Number of Terminals 24 Operating Temperature-Min 0.0 Cel Operating Temperature-Max 75.0 Cel Organization 11 DEDICATED INPUTS, 10 I/O Output Function MACROCELL Package Body Material PLASTIC/EPOXY Package Code DIP Package Equivalence Code DIP24,.3 Package Shape RECTANGULAR Package Style IN-LINE Peak Reflow Temperature (Cel) NOT SPECIFIED Power Supplies 5 Propagation Delay 15.0 ns Qualification Status Not Qualified Seated Height-Max 5.08 mm Sub Category Programmable Logic Devices Supply Voltage-Nom 5.0 V Supply Voltage-Min 4.75 V Supply Voltage-Max 5.25 V Surface Mount NO Technology TTL Temperature Grade COMMERCIAL EXTENDED Terminal Finish Tin/Lead (Sn/Pb) Terminal Form THROUGH-HOLE Terminal Pitch 2.54 mm Terminal Position DUAL Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED Length 30.734 mm Width 7.62 mm Additional Feature 10 MACROCELLS; REGISTER PRELOAD; SHARED INPUT/CLOCK; 1 EXTERNAL CLOCK For datasheet search…PAL 22V10-15PC Or go to… https://www.datasheets360.com/pdf/4722730572941597908 PLEASE NOTE! These came to us as part of a lot of surplus stock from a large electronic manufacturing Co. and have been kept in storage for a time, they are however pristine, stored with us still in their original packaging and ‘as new’ in all respects, the photographs are representative of their excellent condition, and, as with all our products they come with a full guarantee. If you have similar items to this, or indeed any electronic components that are surplus to requirements please contact us with details.
